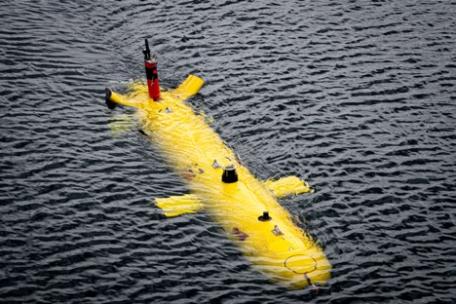

Large AUV (Explorer)

The Explorer AUV is a large, traditional deep-diving survey vehicle. The addition of forward planes set the Explorer apart giving it unparalleled manoeuvrability and stability. The MUN Explorer is typically configured for high-resolution bathymetric surveys with an R2Sonic 2022 multibeam and EdgeTech 2200 side scan sonar and sub-bottom profiler. Because of the Explorer’s open and modular architecture, it can be reconfigured to carry a variety of scientific and survey payload by request.

AOSCENT staff are experienced with all aspects of AUV operations including mission planning, sensor integration, and offshore operations.

Explorer

Depth:

3000m

Speed:

1.5m/s nominal, 2.5m/s max

Diameter:

0.69m

Length:

4.5m

Endurance/Range:



Navigation:

GPS, INS, DVL, pressure (depth), USBL, obstacle avoidance

Communications:

Radio, underwater acoustic

Payload:

  • R2Sonic 2022 Multibeam
  • EdgeTech 2200 SideScan Sonar & Sub-Bottom Profiler
  • Seabird FastCAT CTD
  • RDI DVL/ADCP
  • Programmable Back-Seat Driver
