ITS Testing Machine is used to determine the tensile strength of compacted bituminous mixtures. It can also be used in multiple experiments like Quick Undrained Triaxial, Unconfined Compression and CBR testing with proper accessories.

Specifications:

• High precision load cell, class 1, and class 0.5 calibration
• 1/50,000 force resolution
• 0.5~60 mm/min test speed (upgradable option)
• User-friendly remote for chuck control
• Overload protection limit sensor
• Emergency power cut off button
• Interchangeable tensile insert grip system

The rotational viscometer is used to measure the viscosity of a fluid. At a constant speed, torque is produced to rotate a spindle submerged in a fluid. Time-dependent fluid analysis has been conducted with the continuous rotation of the spindle. For materials with low, medium, and high viscosity digital models can be used.

Specifications:

• Using Rotational Viscometer, AASHTO T 316 and ASTM D 4402 can be conducted.
• Spindle barcode for auto spindle recognition
• Quick and easy automatic or manual gap setting
• Quick profiling of viscosity vs. temperature
• User-friendly LCD touch screen with graphical display
• 11 memory slots for structured multi-step test programs
• Auto spindle identity recognition
• Quick connect coupling for easy spindle attachment
• Temperature control from -20°C to180°C
• Maximum Torque: 100 mN·m
• Torque Resolution: 0.15 μ N·m
• Speed: 0.01-1,300 rpm

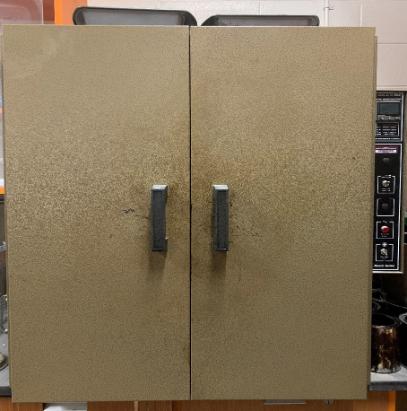

The convection oven is used for drying, preheating, curing, dehydrating, aging and many other processes.

Specifications:

• All bench ovens have aluminized interiors. High impact thermoplastic cool handles are used
• Volume: 10.6 cubic feet
• Temperatures up to 550 °F (287 °C)

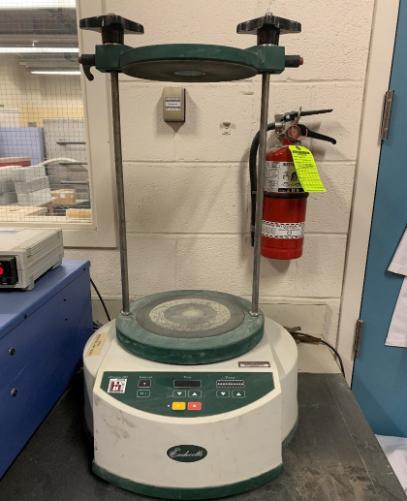

The sieve shaker is used for sieving tasks in laboratories. It provides fast and reproducible results for optimum sieving action. It is very with an electromagnetic drive combined with a 3D sieving motion. The quick-release clamping system and digital display make it easier to use.

Specifications:

• Range: 20 μm to 125 mm
• Drive / sieving motion: Electromagnetic 3D
• Max. batch / feed capacity: 3 kg
• Max. number of sieves: 8 full height / 16 half height (200 mm/8" sieves)
• Amplitude: 0 - 3 mm* digital setting in 10 steps
• Speed: 3,000 min-1 at 50 Hz
• Time display: Digital, 00:10-99:50 min
• Suitable for both dry and wet sieving.
• No Serial interfaces.
• Sieve diameter:100/200 mm
• Max. height of sieve stack: up to 450 mm
• Clamping device: quick-release clamping system (included)
• Electrical supply: Different voltages available
• Power connection:1 - Phase
• W x H x D: 418 x 232 x 435 mm
• Net weight: Approximately 35 k

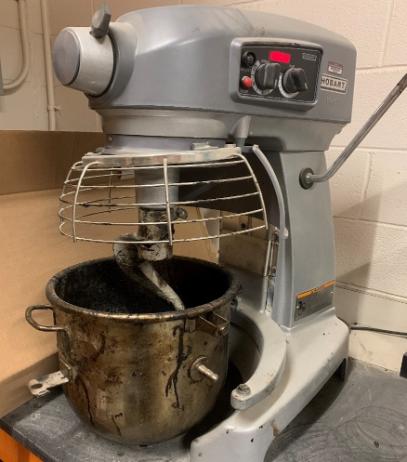

This mixer offers greater efficiency with a large-capacity bowl and a high-speed setting while mixing. For convenient use, there is a paddle, wire whip, hook, and stainless-steel bowl. In order to confirm safety, there is a safety guard and overload protection switch. This mixer can operate at three different speeds.

Specifications:

• Bowl Capacity: 20 Qt
• Electrical: 110 V / 60 Hz / 1 Ph
• Height: 30.5"
• Width: 16"
• Length: 21.5"
• Material: Stainless Steel
• Power: 1.5 HP / 1.12 kW
• Product Weight: 262.0 k
• Shaft Speed: 1st Speed 108, 2nd Speed 195, and 3rd Speed 355 rpm

Thermo Waterbath offers outstanding temperature control. It is very reliable with a wide range of capacities to support a variety of applications. It is very user friendly with icon-based display. It also has some safety features.

Specifications:

• Ambient to 100 °C ± 0.1 °C stability
• ± 0.2 °C to ± 0.05 °C Uniformity
• Volume: 89 L
• 5/10 L dual bath
• Voltage: 120V

Marshall Compactor is used to compact the sample and after the completion of the required number of blows, it stops automatically. Safety is ensured by using a safety guard for all moving parts and an emergency stop red button whenever the compactor needs to stop.

Specifications:

• Can be used for ASTM D1559, AASHTO T245, ASTM D6926
• A noise reduction cabinet is available
• CE versions complete with safety guards for operator protection and emergency stop button
• Model: 76-B4424
• Power rating: 800 W
• Drop frequency (lows/min): 55 ± 5
• Tamping face dia.: 98.5 mm
• Rammer weight: 4536 ± 9 g
• Drop height: 457 ± 3 mm
• Overall dimensions: 385x470x1867 mm
• Weight approx.: 150 kg
