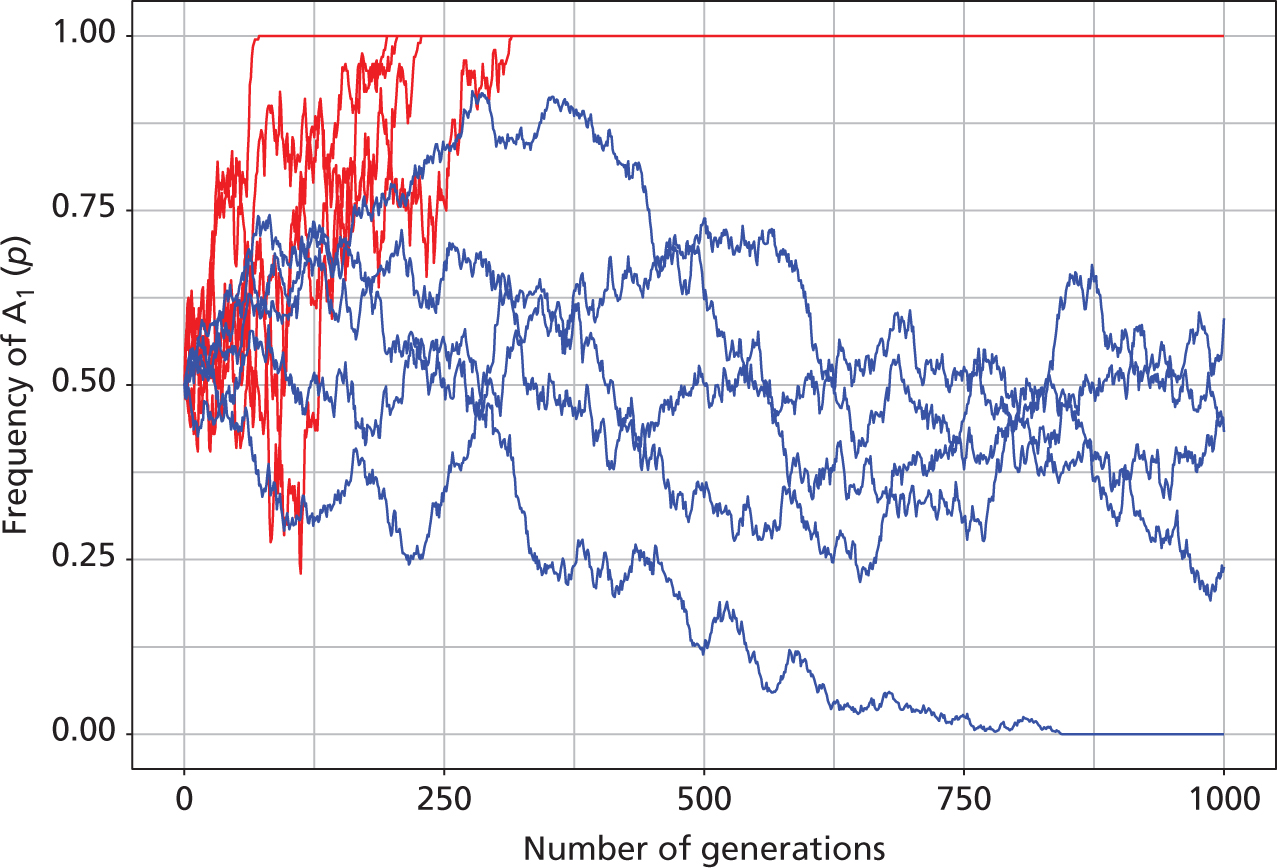

Simulation of Genetic Drift in finite populations
(N = 100 & N = 1,000)

    Beginning at t = 0 with f(A1) = p = 0.5, five replicate simulations with starting size N = 100  or N = 1,000  are allowed to drift randomly until loss or fixation of A1 [f(A1) = 0.0 or 1.0, respectively]. In these simulations, note that A1 goes to fixation in all five N = 100 replicates, the first before t < 100 and the last before t < 350. [Ignore uniform fixation: 2 or 3 populations would be expected to go one way or the other]. In the N = 1,000 simulations, four of five simulations remains in the range 0.0 < p < 1.0, with the fifth population having gone to loss > t = 800. Note that one sample has drifted as high as p = 0.90, and as low as p = 0.25., and at t = 1000 remains near p = 0.50.


Figure © 2019 Sætre & Ravinet; Text material © 2024 by Steven M. Carr
