iG3_02_08_Figure-L

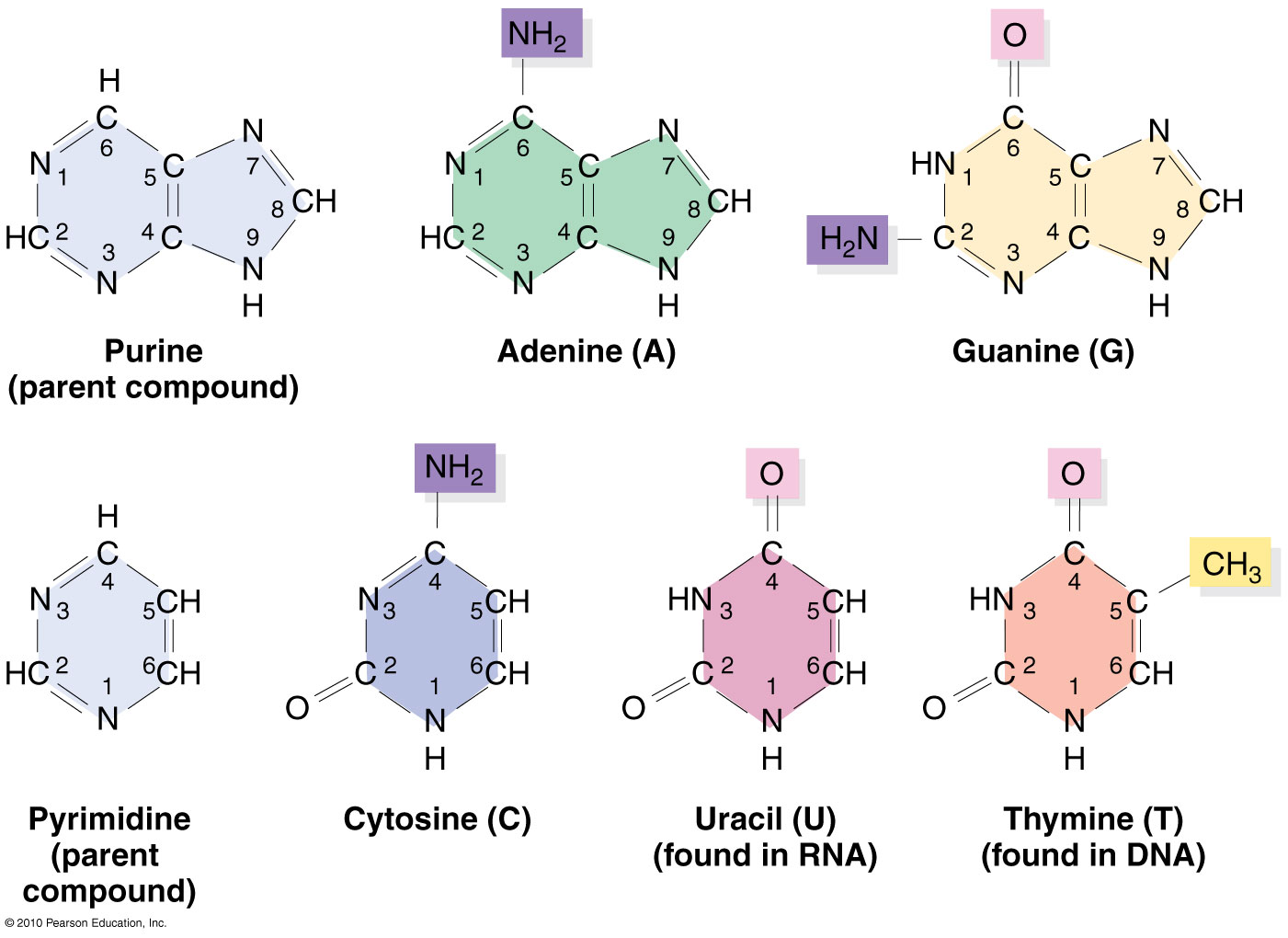

Nitrogenous bases in DNA


    C & T are single-ringed pyrimidines A & G are double-ringed purines. Note that the main purine ring is a a pyrimidine ring, with the same numbering system, and the secondary rings are identical. The attachment of NH2 , CH3, and C=O groups makes each base unique. Compare the structure of thymine with that of uracil, which is a pyrimidine base  found in RNA. A mnemonic device to remember the pyrimidines is that the "Pyramids were CUT from stone."


Figure © 2012 TA Brown, Introduction to Genetics (1st ed.); additional text © 2024 by Steven M. Carr
