Cann
          et al. 1987

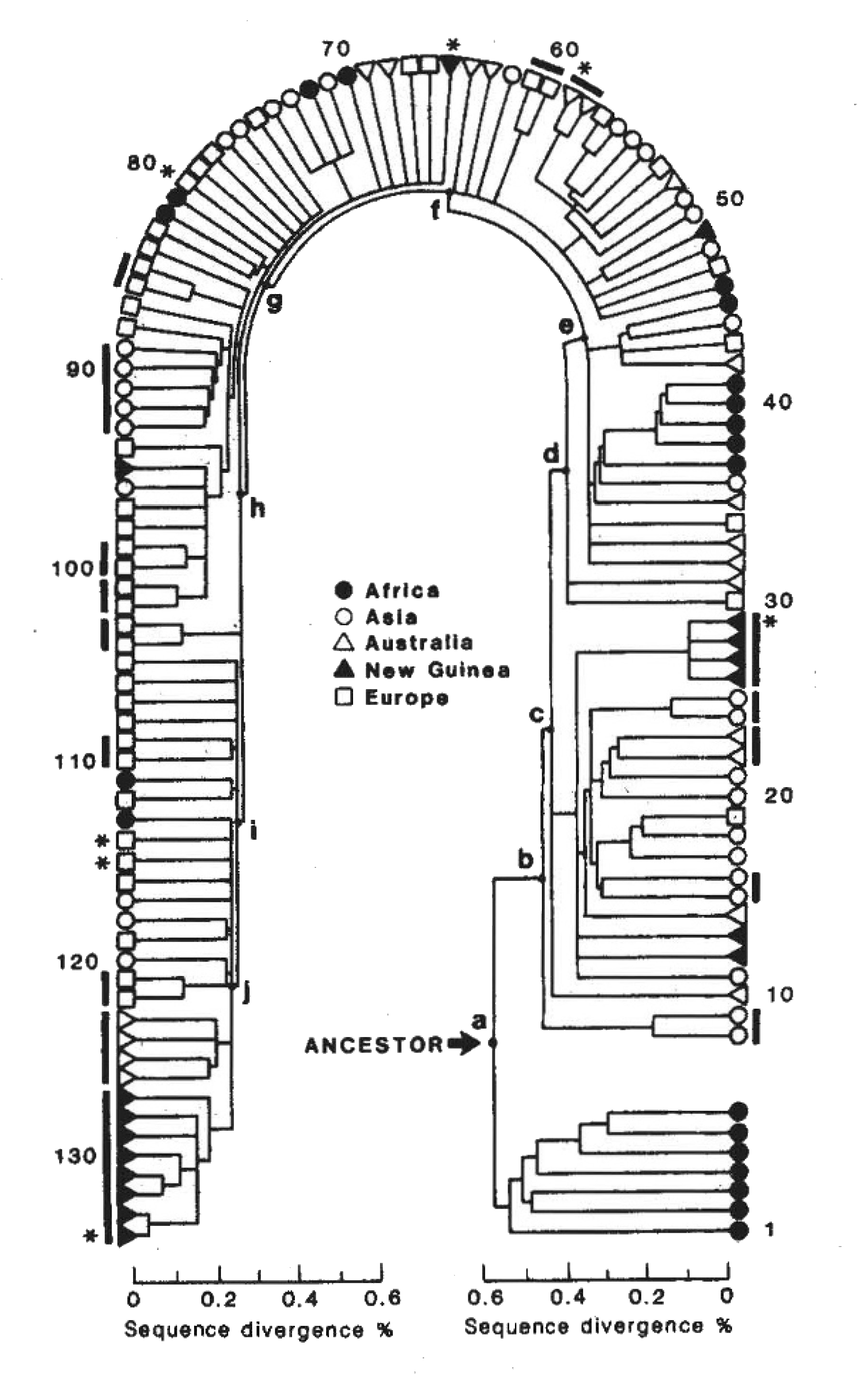

RFLP map of human mtDNA variation: "The Mitochondrial Eve"

    Becky Cann, Mark Stoneking, and Allan Wilson obtained mitochondrial DNA (mtDNA) from the placentas of 113 women of various continental origins. Comparative analysis of 398 variable restriction sites in their RFLP maps showed that seven women of African descent (lower right corner) formed a related clade that diverged early in the evolution of Anatomically Modern Humans (AMHs) from all other women (including others of African origin). This finding was consistent with an African origin of all modern humans, (the "Out of Africa" hypothesis). The calculated divergence divergence time of the most recent common ancestor (the so-called "Mitochondrial Eve") placed her far more recently that previously supposed, less than 200,000 years ago.

    It must be emphasized that the occurence of an "Eve" for mtDNA is a consequence of a population genetic phenomenon coalescence, where any gene traces backwards in time to a single common ancestor, and does not mean that she was the only woman alive at that time.

Figure from Cann, Stoneking, & Wilson (1987) "Nature," 325:31; additional text © 2012 by Steven M. Carr
