Helix-Loop-Helix motifs in Calcium-binding proteins

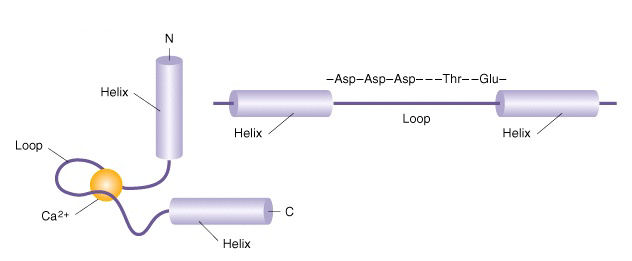

The cylinders represent alpha helices; the loop binds Ca2
